Nexus Container Registry

Sonatype Nexus Repository Manager offers three types of docker registry;

  • Group
  • Hosted
  • Proxy

This guide will focus on adding a Hosted docker registry as an External Octopus Feed.

This guide was written using Nexus OSS version 3.37.0-01

Configuring a Nexus Hosted Docker Registry

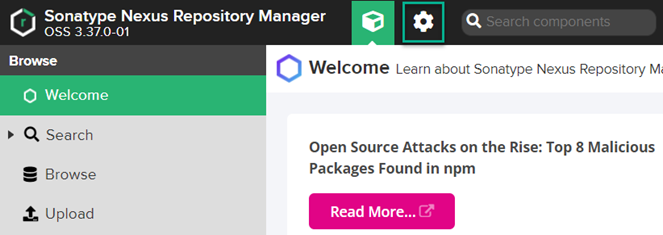

From the Nexus web portal, click on the gear icon to get to the Administration screen.

Administration gear Icon

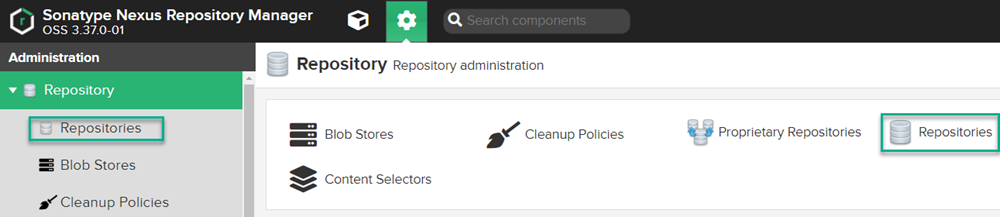

Click on Repositories

Repositories

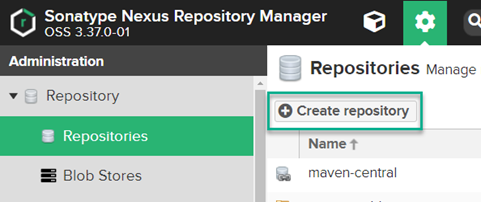

Click Create repository

Create repository

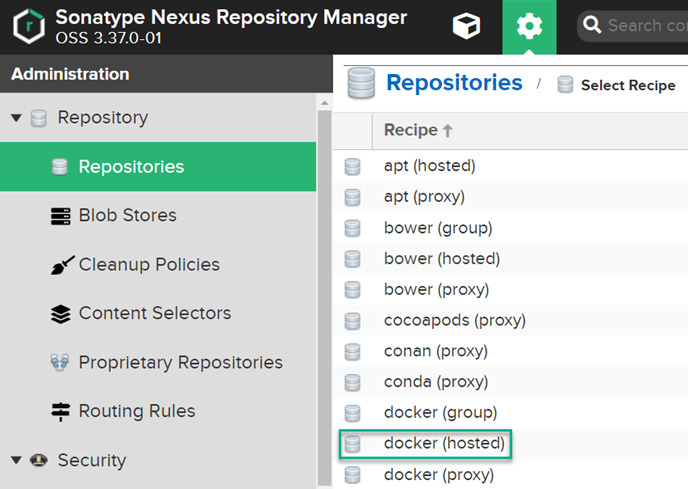

Choose docker (hosted) from the list of repositories to create

Docker hosted

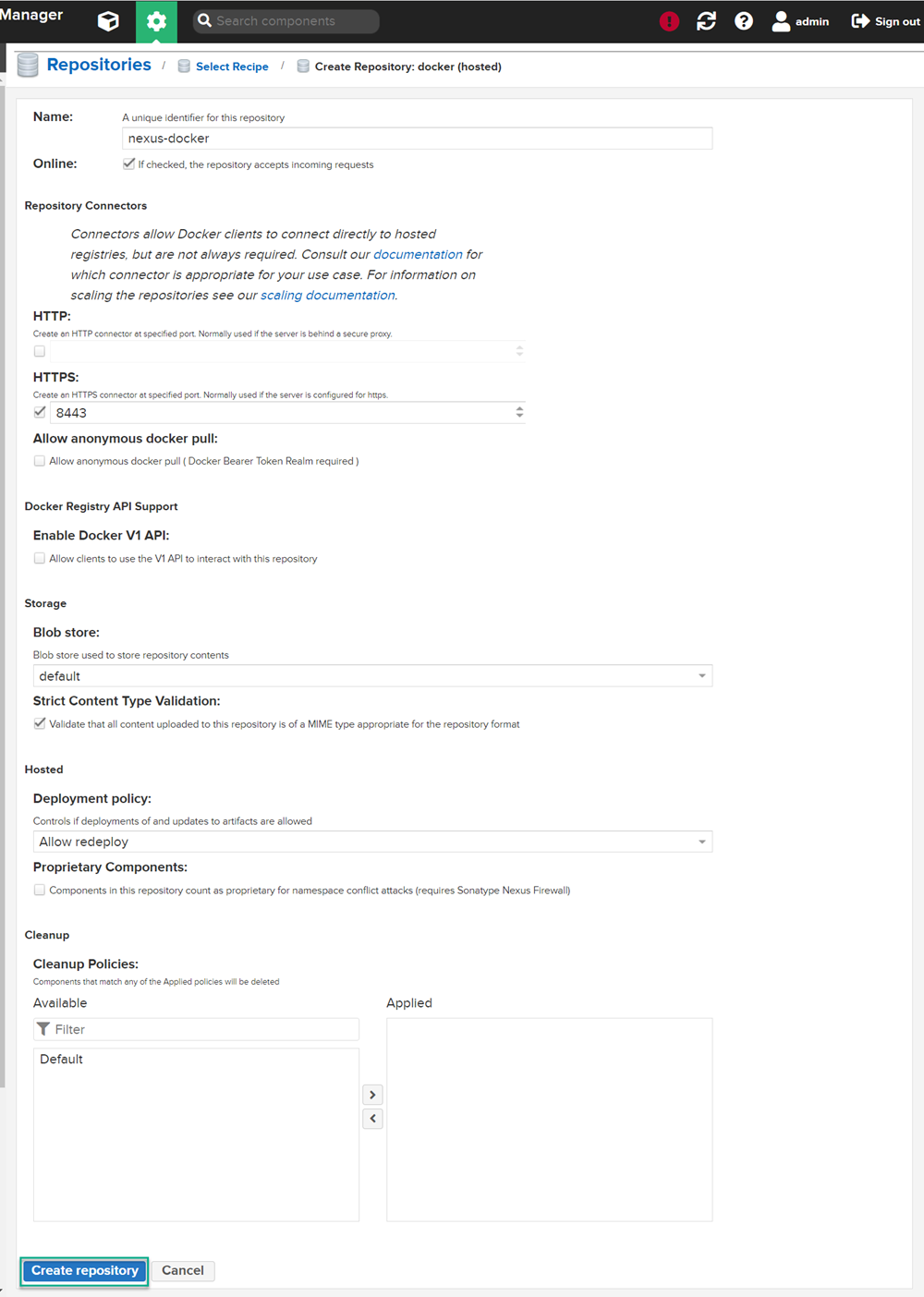

Give the repository a name and change any applicable configuration options. When using HTTPS, a Nexus docker repository will listen on the specified port.

Click Create repository when you are done.

Create Nexus docker repository

When the repository has been created, click on the entry in the list to bring up the repository properties.

Optionally push a container to the feed to make sure the feed works when added to Octopus Deploy.

Adding an Nexus Docker repository as an Octopus External Feed

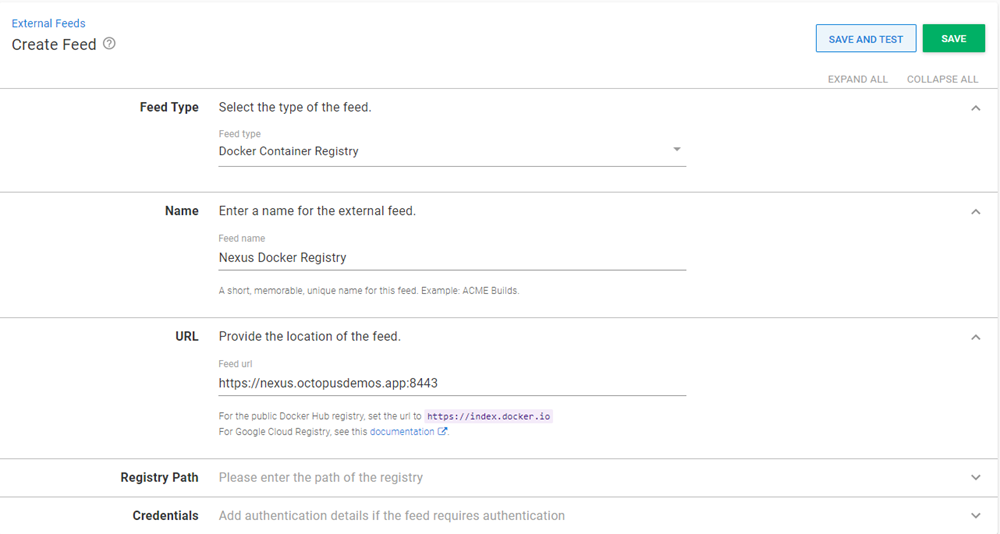

Create a new Octopus Feed by navigating to Library ➜ External Feeds and select the Docker Container Registry Feed type.

Give the feed a name, in the URL field, paste the URL to your Nexus server with the associated port. It should look similar to this format:

https://your.nexus.url:[repository port]

Nexus NuGet feed

Optionally add Credentials if they are required.
